Centrifuge 10

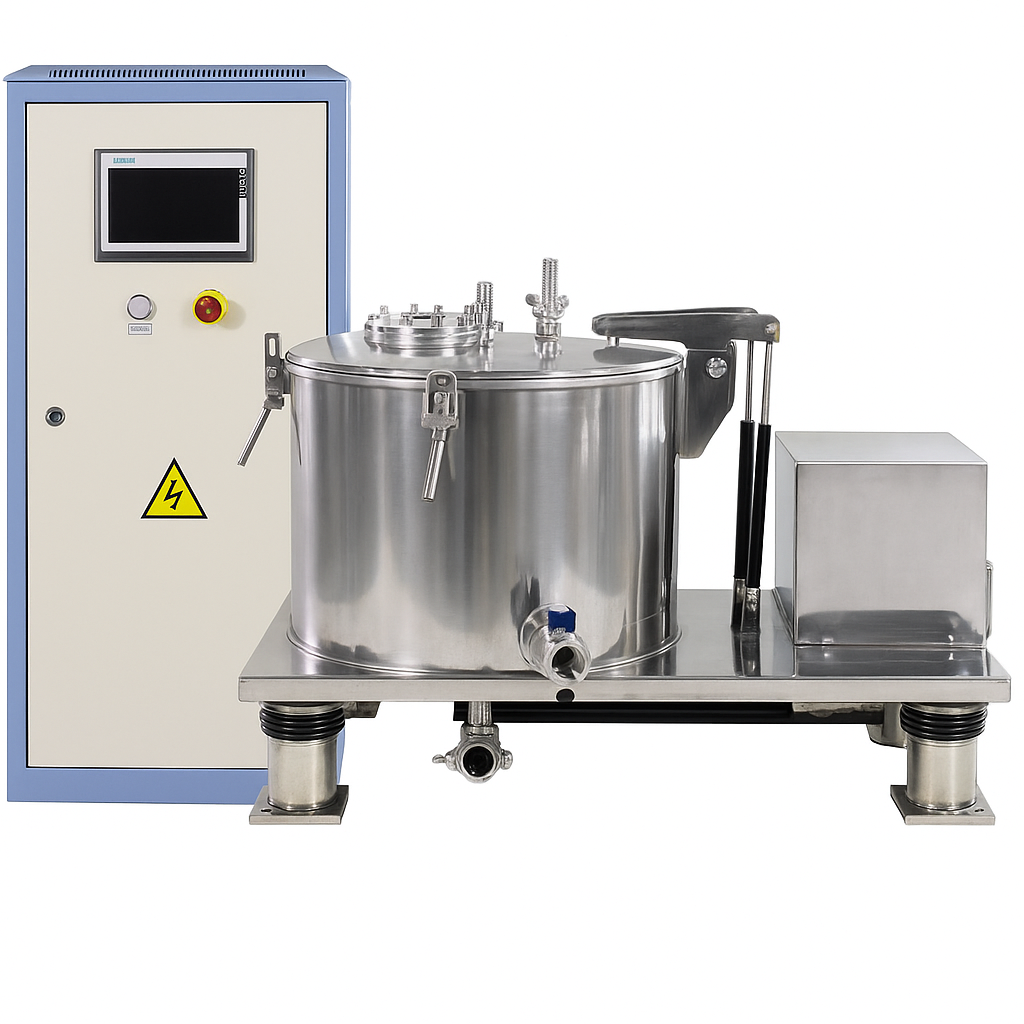

PPTD-10 Industrial Plate Centrifuge with Bi-Directional Agitation

The PPTD-10 is a high-performance industrial plate centrifuge, engineered for efficient extraction and separation of plant materials using ethanol. Its robust construction and top-tier components make it ideal for labs and production settings in the food, pharmaceutical, or cannabis industries.

Technical Specifications:

• Model: PPTD-10

• Voltage: 220V, 50/60Hz

• Drum Capacity: 14 L

• Jacket Volume: 22 L (can be connected to a chiller for precise cooling)

• Total Loading Limit: 15 lbs (~6.8 kg)

• Plant Material Limit: 4 lbs (~1.8 kg)

• Speed: 2700 RPM

• Separation Factor: 1225 g

• Motor Power: 1.1 kW

• Net Weight: 280 kg

Key Features & Benefits:

• Washing & Soaking Function: Bi-directional agitation ensures thorough ethanol mixing and maximized extraction efficiency.

• Integrated Cooling Jacket: Compatible with external chillers to maintain controlled temperatures during operation.

• Advanced Top Lid Design:

  • Glass observation window

  • Explosion-proof lamp

  • Multiple inlet/outlet ports

  • Customizable according to customer needs

Control System:

• Siemens touch screen for intuitive operation

• ABB or Honeywell frequency converter

• Schneider Electric components for durable electrical performance

Premium Bearings:

• Main bearings supplied by NSK/SKF – imported from Japan and Germany for long-lasting, low-vibration operation.

Ideal for:

• Ethanol extraction

• Herbal and plant-based material processing

• Pharmaceutical, cosmetic, and nutraceutical production

• Temperature-sensitive separation processes

Customization available upon request – including port configurations, control options, and material specifications.
