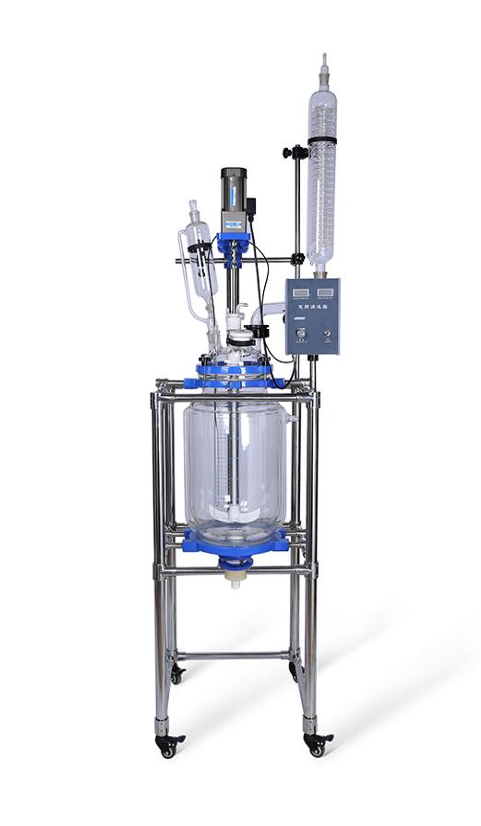

Chemical Reactor 30L – 30 L Jacketed Glass Reactor with Stainless Steel Frame

Chemical Reactor 30L – 30 L Jacketed Glass Reactor with Stainless Steel Frame

The 30L jacketed glass reactor is a high-capacity solution for advanced chemical processing, extraction, and scale-up. Built with a corrosion-resistant 304 stainless steel frame and featuring a spacious 30-liter reaction vessel, it provides outstanding performance, stability, and control for industrial or laboratory use.

Key Features:

• Reactor Volume: 30 liters

• Jacketed Glass Vessel: Allows precise temperature control using external thermal fluid systems

• Stirring System:

  • Power: 120 W

  • Speed Range: 0–600 rpm (Max. 1300 rpm)

  • Stirring Shaft Diameter: 12 mm

  • Motor Torque: 1200 g/cm

• Frame: Made of 304 stainless steel – rustproof, durable, and easy to clean

• Power Supply: 220 V / 50–60 Hz (Optional: 110 V / 60 Hz)

• Explosion-proof Options: Stirring motor variants available in 180 W / 250 W / 370 W

• Dimensions (L×W×H): 1650 × 660 × 780 mm

• Gross Weight: 90 kg

• Mount Type: Floor-standing

Applications:
Designed for large-scale synthesis, botanical extraction, crystallization, and chemical development projects. The 30L reactor provides high-volume capacity while maintaining exact thermal and mechanical control, making it ideal for process optimization and small-scale production.
