Chemical Reactor S-3L – 3 L Jacketed Glass Reactor

Chemical Reactor S-3L – 3 L Jacketed Glass Reactor

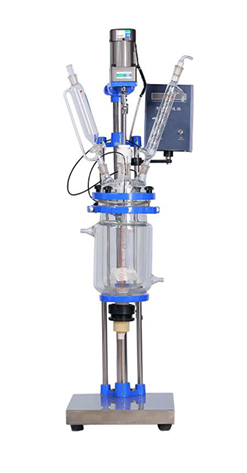

The S-3L is a durable and versatile glass reactor with a 3-liter double-jacketed vessel, designed for efficient chemical synthesis, extractions, and temperature-sensitive reactions. Its expanded volume and powerful motor torque make it ideal for more demanding laboratory or pilot-scale operations.

Key Features:

• Reactor Volume: 3 liters

• Jacketed Glass Vessel: Provides efficient thermal regulation via heating or cooling liquid circulation

• Stirring System:

  • Power: 60 W

  • Speed Range: 0–600 rpm (Max. 1300 rpm)

  • Stirring Shaft Diameter: 12 mm

  • Motor Torque: 2400 g/cm – suitable for viscous materials

• Power Supply: 220 V / 50–60 Hz (Optional: 110 V / 60 Hz customizable)

• Explosion-proof Options: Stirring motor available in 180 W / 250 W / 370 W configurations

• Dimensions (L×W×H): 1300 × 580 × 540 mm

• Gross Weight: 53 kg

• Mount Type: Floor-standing

Applications:
The S-3L is ideal for chemical synthesis, extraction processes, formulation, crystallization, and thermal-controlled reactions in R&D or production labs. The double-jacket design supports integration with thermostatic circulators for precise process control.
